Aprimatic BA230 control board manual

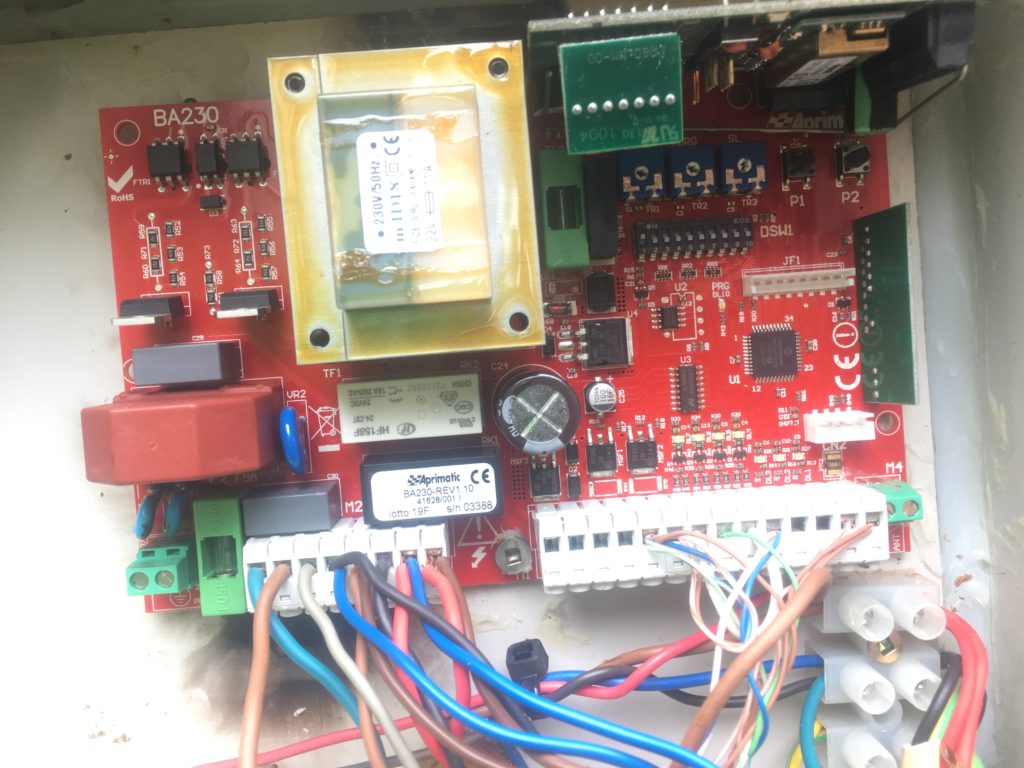

Exploring the Aprimatic BA230 Control Board
The Aprimatic BA230 control board is a key player in gate automation systems. It’s designed by Aprimatic, a reputable brand known for its automation solutions for gates, doors, and barriers. This control board ensures the smooth and reliable operation of gate motors. Let’s dive into the features, installation process, and benefits of the Aprimatic BA230 control board.
Key Features
Versatile Compatibility
The BA230 control board is versatile. It’s compatible with various gate motors, including those used in residential and commercial settings. It can manage both swing and sliding gate operations.
Advanced Programming Options
The control board offers multiple programming options. These options allow you to customize the gate’s operation. You can set opening and closing times, adjust force, and tweak obstacle sensitivity.
Safety Features
Safety is a top priority with the BA230. It includes obstacle detection and auto-reverse features. These stop and reverse the gate if an obstruction is detected. This prevents accidents and damage to the gate and motor.
Remote Control Capability
The BA230 supports remote control operation. This allows users to open and close the gate from a distance. It can be paired with various remote control models for added convenience.
Easy Integration
The control board integrates seamlessly with other security and automation systems. This includes intercoms, keypads, and photocells, enhancing the overall security of your property.
Installation Process
Mounting the Control Board
Mount the control board in a secure, weather-protected area near the gate motor. Ensure it is easily accessible for future maintenance and programming.
Wiring Connections
- Power Supply: Connect the control board to a stable 230V power supply.
- Motor Connections: Connect the gate motor wires to the designated terminals on the control board.
- Accessory Connections: Attach any additional accessories like photocells, keypads, or intercoms to the appropriate terminals.
Programming the Board
- Initial Setup: Follow the user manual to enter the initial setup mode.
- Set Parameters: Program the opening and closing times, force settings, and obstacle sensitivity according to your specific requirements.
- Test Operation: After programming, test the gate operation to ensure everything is working correctly. Make adjustments if necessary.
Benefits of the Aprimatic BA230
Enhanced Security
The BA230 control board enhances the security of your property. It integrates with various security devices. Features like obstacle detection and auto-reverse add an extra layer of safety.
Customized Operation
With advanced programming options, you can customize the gate’s operation. This includes adjusting the speed, force, and sensitivity to ensure optimal performance.
Reliability
Aprimatic is known for its reliable products, and the BA230 is no exception. It is built to withstand various environmental conditions, ensuring long-term, trouble-free operation.
User-Friendly Design
The control board is designed to be user-friendly. It comes with clear instructions and straightforward programming. This makes installation and maintenance easier for both professionals and DIY enthusiasts.
Maintenance Tips
Regular Inspections
Perform regular inspections of the control board and its connections. This ensures everything is secure and functioning correctly.
Clean Enclosures
Keep the control board enclosure clean and free from dust and debris. This prevents operational issues.
Software Updates
Check for any available software updates from Aprimatic. This ensures your control board runs the latest features and security enhancements.
Conclusion
The Aprimatic BA230 control board is a versatile and reliable solution for gate automation. With its advanced programming options, safety features, and compatibility with various accessories, it provides a comprehensive solution for both residential and commercial gate operations. Proper installation and regular maintenance will ensure your gate system operates smoothly and efficiently. For professional installation and support, consider contacting a local gate automation expert.
