Restoring a Centurion i5 Photocell Receiver After Moisture and Insect Damage
Automatic gate safety beams work outdoors in difficult conditions every day. Therefore, moisture, insects, dust, and condensation can eventually damage sensitive electronic components.
Recently, we repaired a heavily contaminated Centurion i5 infrared safety beam receiver. The photocell receiver stopped operating correctly because insects and moisture entered the enclosure.
Fortunately, the board was still recoverable after careful cleaning and protection.
What Happened to the Photocell Receiver?
The Centurion i5 safety beam receiver enclosure had become contaminated internally over time. Small openings around the cable entry points allowed insects and moisture inside the housing.
Eventually, insect residue collected across the circuit board. At the same time, condensation and dirt started affecting the low-voltage electronics.
As a result, the automatic gate system became unreliable.
Why Safety Beam Receivers Matter
Infrared safety beams are one of the most important safety devices in an automatic gate system.
These photocells detect vehicles, people, and obstacles across the gate opening. Consequently, the gate controller stops or reverses movement when the beam is interrupted.
If the receiver fails, several dangerous or frustrating problems may appear.
For example:
- the gate may refuse to close;
- the automation may stop randomly;
- the controller may report safety beam faults;
- the gate may reverse unexpectedly;
- intermittent operation may occur.
Therefore, safety beam maintenance should never be ignored.
Initial Inspection
First, the photocell receiver was disconnected safely from the gate system.

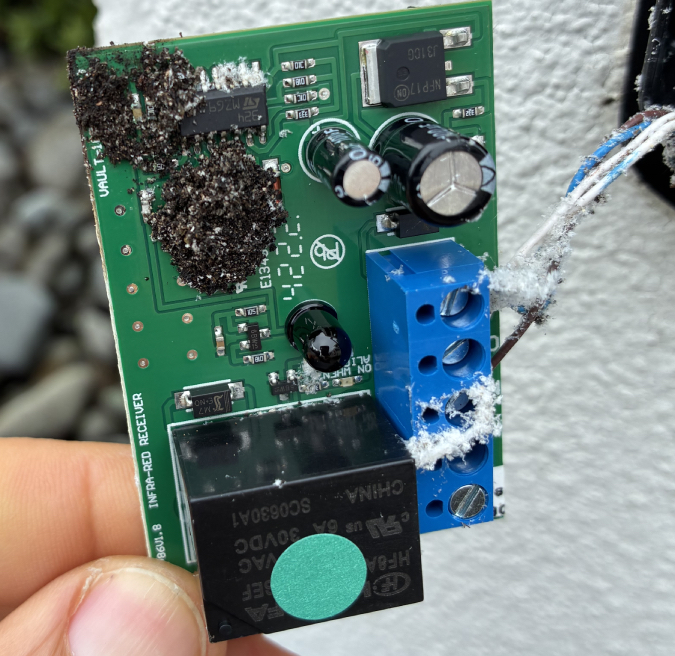

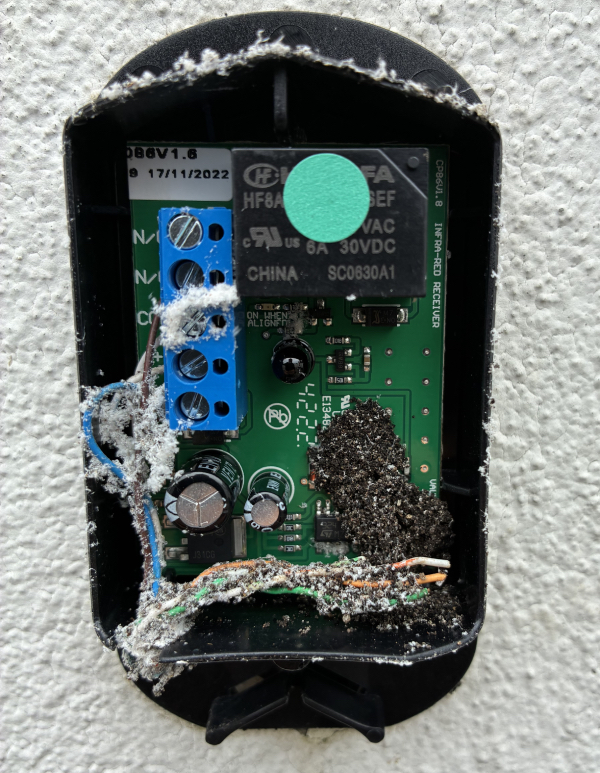

After removing the enclosure cover, heavy contamination became immediately visible. Insect debris had collected around multiple electronic components.
Some areas also showed early signs of moisture-related corrosion.
Fortunately, the printed circuit board tracks still appeared intact.
Cleaning the Circuit Board
Next, the Centurion i5 receiver board was removed carefully for detailed cleaning.

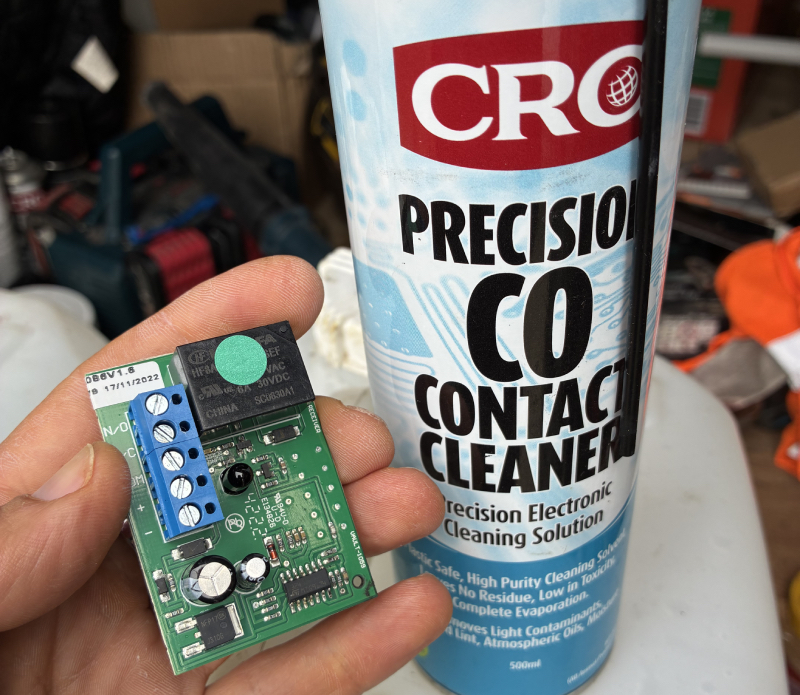

Precision electronic contact cleaner was then applied across the board. This process removed contamination, insect residue, oils, and moisture deposits.
Importantly, normal household cleaners should never be used on electronic gate components. Many cleaning products leave conductive residue behind. Consequently, they may create additional faults later.
Instead, specialised electronic contact cleaner evaporates safely without damaging sensitive components.
Drying and Inspection

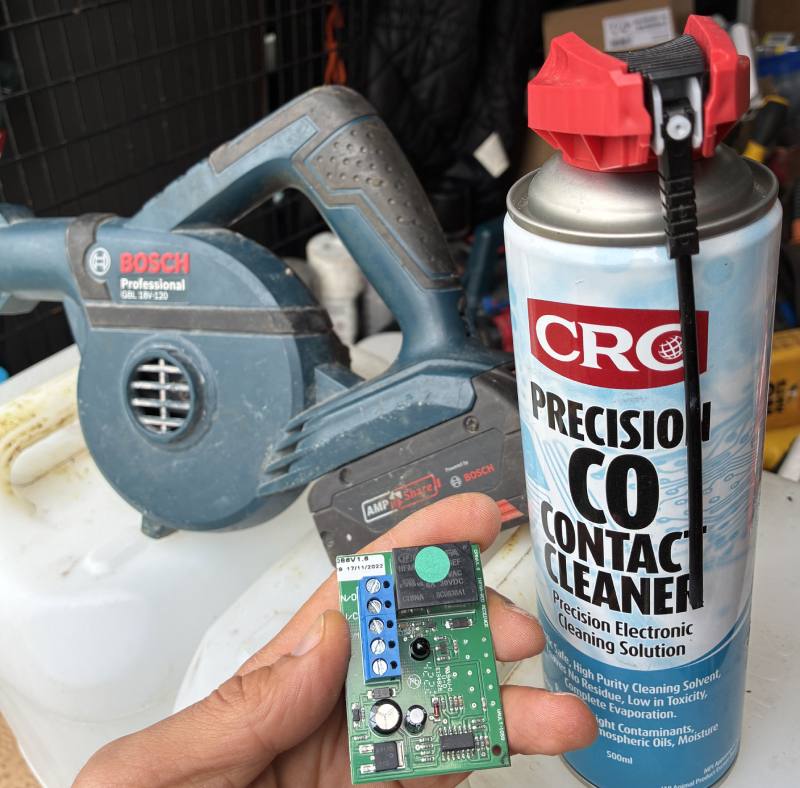

After cleaning, compressed air was used to remove remaining debris and help dry the board fully.
Then, all major components and solder joints were inspected carefully.
Fortunately, no major burn marks or broken tracks were discovered. The relay and low-voltage circuitry also appeared operational.
However, several exposed areas remained vulnerable to future moisture damage.
Therefore, additional protection was recommended.
Applying Protective Insulation

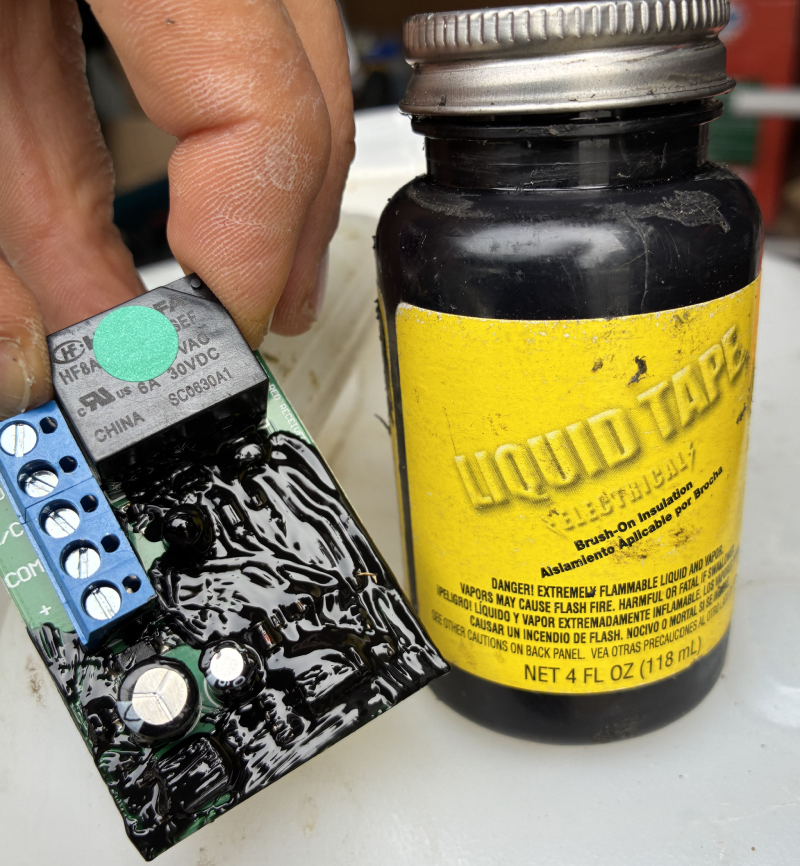

Once the board was completely dry, a liquid electrical insulating coating was applied to selected areas of the receiver board.
This coating creates a protective barrier against:
- condensation;
- moisture;
- corrosion;
- insect contamination;
- environmental exposure.
As a result, the receiver becomes much more resistant to outdoor conditions.
Importantly, connectors and adjustable components were left accessible for future servicing and alignment.
Why Outdoor Gate Electronics Fail
Outdoor automation equipment constantly experiences harsh environmental conditions.
For example:
- temperature changes create condensation;
- insects seek warm enclosed spaces;
- moisture enters through cable openings;
- dust accumulates inside enclosures.
Over time, these conditions gradually reduce electronic reliability.
Therefore, preventive servicing is extremely important for automatic gates.
How to Prevent Photocell Damage
Several simple maintenance steps help extend the life of infrared safety beams.
Seal Cable Entry Points
Unsealed openings allow insects and moisture into the enclosure. Therefore, cable entries should always be sealed properly.
Inspect Safety Beams Regularly
Annual servicing helps identify contamination early. Consequently, small problems can be corrected before major failures develop.
Keep Enclosures Clean and Dry
Dirt and organic residue attract insects. Therefore, safety beam housings should remain clean internally.
Replace Damaged Covers
Cracked or poorly sealed covers allow water inside the receiver housing. As a result, corrosion develops much faster.
Professional Gate Automation Maintenance
Automatic gates rely heavily on reliable safety devices. Therefore, infrared safety beams should always remain in good condition.
At Sesame Gate Automation, we inspect, clean, diagnose, and repair photocells, gate controllers, motors, and automation electronics across Auckland.
We also use specialised electronic cleaning products and protective coatings designed specifically for outdoor automation systems.
Final Result
After cleaning, drying, testing, and applying protective insulation, the Centurion i5 photocell receiver returned to stable operation.
The gate system regained reliable safety beam communication, and the electronics received additional protection against future contamination.
However, severe corrosion can eventually make replacement unavoidable. Therefore, regular servicing remains the most cost-effective solution for long-term gate reliability.
