Written by : Nick
18-02-2022
Replacing an under driveway photocells wire
Problems with an under driveway photocells wire is very common issue on both sliding and swing gate. Photocells transmitter that installed across the driveway needs a power feed. Sometimes installers use a gap between the concrete slabs or caution a new gap cable size and run the cable in sealed on top. After a year the cable, even special underground one, can be damaged by moving concrete slubs. To avoid it better cut the gap a bit wider , so you can run a wire in a conduit.
Running a wire across a concrete driveway might seem challenging. With the right approach, you can do it efficiently. Follow these steps to ensure a smooth process.
Step 1: Plan Your Route
First, determine the best route for the wire. Choose the shortest and most direct path. This minimizes the amount of concrete you need to cut.
Step 2: Gather Your Tools
You will need the right tools. Get a concrete saw, a hammer drill, and a chisel. Also, have some PVC conduit for the wire.
Step 3: Mark the Path
Use chalk or tape to mark the path on the driveway. This ensures you cut in the right place.
Step 4: Cut the Concrete
Use the concrete saw to cut along the marked path. Make sure to cut deep enough for the conduit. Wear safety gear to protect yourself from dust and debris.
Step 5: Break the Concrete
After cutting, use a hammer drill and chisel to break the concrete. Remove the broken pieces to create a trench.
Step 6: Lay the Conduit
Place the PVC conduit into the trench. Ensure it lays flat and fits well. This conduit will protect the wire from damage.
Step 7: Run the Wire
Feed the wire through the conduit. Ensure it runs smoothly without kinks or bends.
Step 8: Cover the Trench
Once the wire is in place, cover the trench. Use concrete mix to fill it. Smooth it out to match the driveway surface.
Step 9: Let It Cure
Allow the concrete to cure. This usually takes 24-48 hours. Avoid driving over this area until fully cured.
Conclusion
Running a wire across a concrete driveway is straightforward with the right tools and steps. Plan your route, cut the concrete, lay the conduit, and cover the trench. If you need professional help, contact our team for expert service.

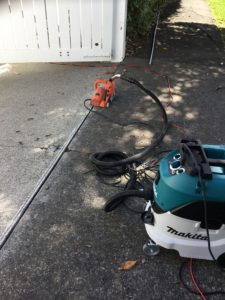

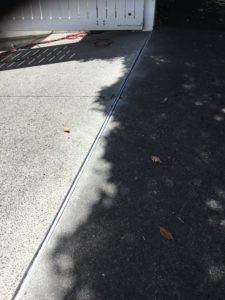

Replacing a photocells wire under the driveway
